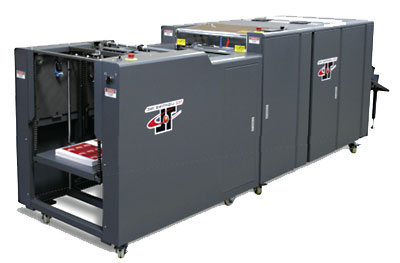

XtraCoat Offline UV Coater / Dryer





The Ideal Offline Coating Solution
XtraCoat offline UV coating systems offer an ideal combination of performance and affordability.
Available in various popular formats, XtraCoat UV coaters are designed with productivity and flexibility in mind.
XtraCoat UV coaters have the ability to easily apply gloss, matte or satin finish coatings on a wide variety of printed paper substrates. Precision stainless steel doctor blade technology keeps the bottom impression roller clean for superior coating quality. Its modular design allows usage with and/or without feeding unit. Their high-efficiency lamp head design incorporates both UV and IR lamp technologies for superior coating laydown and fast curing. Available bridge attachment allows for direct inline feeding from various digital presses.

  • Formats: 18", 25", 29"
  • Automatic feeder 18" pile
  • Three roller coater system
  • Stainless steel doctor blade
  • IR / UV lamp head
  • Fast cure: 300 wpi UV lamp
  • Low energy consumption
  • Small footprint
  • Modular design
  • Fast set-up
  • Fast 4,200 iph
  • Double sheet detector
  • Elliptical reflector
  • Inline bridge to digital presses
  • Made in the USA
  • Starting under $15,000
 XtraCoat System



  pdf brochure

 operator manual





























model maximum sheet width equipment size - l x h x w electrical specs
XCF18-1-3D 18" / 46 cm 9’11“ x 44” x 31.5“ 208/220 - 240 V / 1 Ph. / 60 Hz / 60 A
XCF25-1-3A 25" / 64 cm 10’5“ x 44.75” x 39.25“ 208/220 - 240 V / 3 Ph. / 60 Hz / 60 A
XCF29-1-3A 29" / 74 cm 12’ x 44.75” x 43.25“ 208/220 - 240 V / 3 Ph. / 60 Hz / 75 A
