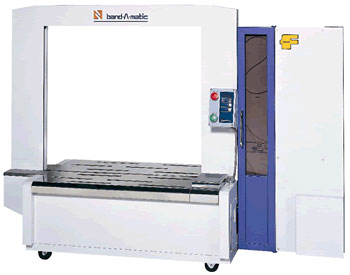

DF-11LT low profile automatic unit

The DF-11LT is a low profile (only 450mm / 17.7 table height) solution specifically designed for low delivery systems. This unit has a fast cycle time of 1.6 seconds (dependent on arch and package size). Its rugged design includes a heavy-duty frame and roller tabletop construction with an integrated accumulator/dispenser system. The arch configurations (height and width) increase independently in 200 mm (approximately 8) increments offering great flexibility to package size. Cycle initiation via switch or foot peddle. Standard operating voltage is 120 volts single phase, but higher voltage configurations are available. This unit is designed to run either 9 mm (3/8) or 12 mm (1/2") strap. For greater bundle security, strapping material is heat sealed for maximum seal efficiency.

DF-11LT

  enlarge photo
Features:   .pdf brochure
  • Low profile design (17.7", 450mm high), allows integration
    with low profile conveyors
  • Easy automatic strap feeding
  • Accepts 9 mm (3/8") strapping as standard or optional 12 mm (1/2") strap
  • Internal dispenser minimizes required floor space
  • Operates on 120 volt single phase power enabling it to be used in any location
  • Control pad command easily adjusts timer functions, temperature setting and seal time
  • Digital display reflects operational status including error code read out
  • Adjustable tension control
  • Automatic motor shutdown reduce power consumption

Download!

2017
catalogue

Dynaric
DF-11LT Automatic System
