D-3100A / D-3300A fully automatic bottom seal strapping units
The D-3100A and D-3300A are operator-less solutions utilizing four powered belts on the table tops and photo switches for their functions. These units can place up to two straps automatically. D-3100A is compatible with 3/16" mm and 1/4" strap, whilst the D-3300A is compatible with 3/8 or 1/2 respectively. With cycle times of only 1.2 seconds, these units can handle the most demanding throughput rates encountered. Cycle initiation is via photo switch although; the unit can be switched to manual mode for stand alone offline applications. Standard table height at 800mm (31.5). Internally mounted coil minimizes floor space. Easy automatic strap feeding, loop kick outs and automatic strap discharge are just a few of the features which make these units very user friendly. Heat seal strapping capabilities offer maximum seal efficiency.

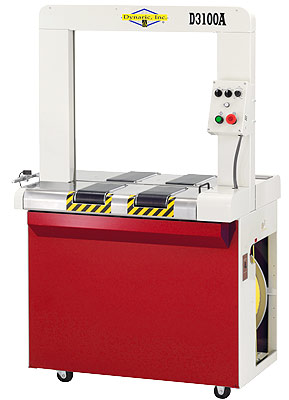

D3100A

  enlarge photo
Features:   .pdf brochure
  • Operator-less strapping with tabletop photocell
  • New state-of-the-art design with rounded corners for personal protection
  • D-3100A compatible with 5 mm (3/16") and 6 mm (1/4") strapping materials
  • D-3300A compatible with 9 mm (3/8") and 12 mm (1/2") strapping materials
  • Compact and lightweight assembly, for easy mobility throughout your facility
  • Compact and low maintenance sealer head
  • Internal strap dispenser minimizes required floor space
  • Stainless steel tensioning roller
  • Cycle time capable of 50 straps per minute
  • Loop kick-out feature eliminates strap jams
  • Faster warm-up time reduces production delays
  • Easily accessible strap feed unit for trouble free automatic strap feeding
  • Open coil cabinet permits visibility of internal strap coil
  • Automatic strap discharge mechanism removes any leftover strap
  • External adjustment of strap tension by simple turn of a dial
  • Six month warranty on parts
