Dynaric
D-3100 / D-3300 Automatic System

D-3100 / D-3300 automatic bottom seal strapping units

The D-3100 and D-3300 are operator friendly strapping units capable of applying 50 straps per minute. The D-3100 is compatible with 3/16" or 1/4" strapping material and the D-3300 is compatible with both 3/8" and 1/2" respectively. Cycle initiation via start switch, table mounted photo switch, or foot switch. Table height is set at 800mm (31.5). Operating on single phase power, these units can be plugged virtually anywhere in your facility. Rounded tabletop corner design offers greater personal safety. Internally mounted coil minimizes required floor space. Automatic strap feeding and discharge upon coil completion are just a few of the benefits these units offer. For greater bundle security, strapping material is heat sealed for maximum seal efficiency.

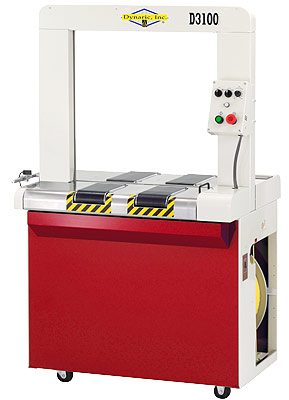

D3100

  enlarge photo
Features: .pdf brochure
  • New state-of-the-art design offers rounded corners for personal protection
  • D-3100 compatible with 5 mm (3/16") and 6 mm (1/4")strapping materials
  • D-3300 compatible with 9 mm (3/8") and 12 mm (1/2") strapping materials
  • Compact and lightweight assembly for easy mobility
  • Compact and low maintenance sealer head
  • Internal strap dispenser minimizes required floor space
  • Stainless steel tensioning roller
  • Cycle time throughput of 50 straps per minute
  • Loop kick-out feature eliminates strap jams
  • Faster warm-up time reduces production delays
  • Easily accessible strap feed for trouble free automatic strap feeding
  • Open coil cabinet permits visibility of internal strap coil
  • Automatic strap discharge mechanism removes leftover strap
  • External strap tension adjustment via dial
  • Six month warranty on parts
