Ultra Dottie II

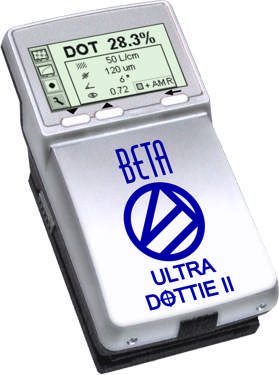

Ultra Dottie II - CTP calibration & pre-press QC
A perfect fit, Ultra Dottie II basic is a cost effective CTP solution for precise measurement and calibration of metal and polyester plates. Self contained, portable unit offer ultra-high resolution, image-based halftone analyzing up to 400 lpi. Its advanced microprocessor technology offers efficient power consumption, drawing less power than competitive units. A high-performance solution, the advanced LED illumination uses two AA alkaline batteries for 50,000+ measurements. Automatic calibration function eliminates the need to calibrate for different screen rulings, angles, etc. Ultra Dottie II is an excellent solution for precise measurement of super-cell, hybrid, and high-resolution stochastic screening. Single reading offers dot area, screen ruling, screen angle, and dot diameter information with every measurement.

Features:

  • Visual image display
  • High accuracy regardless of image or background color
  • Measure stochastic, conventional dots, proofs, films and printed sheets
  • Compatible with CTP, photopolymer, waterless, and silver plates
  • Excellent CTP and imagesetter calibrating solution
  • Power supply 2 x 1.5 V AA alkaline batteries
  • High resolution image zoom
  • Calibration & Target UD II Support Pack included ($939.00 value)
  • Available in basic, advanced and ultimate versions3 year warrantee

special web price - $2,284.00 (basic model)

*prices FOB / $USD / US & Canada


Ultra Dottie II

Ultra Dottie II  enlarge photo
Ultra Dottie II pdf brochure
Ultra Dottie II comparison chart
